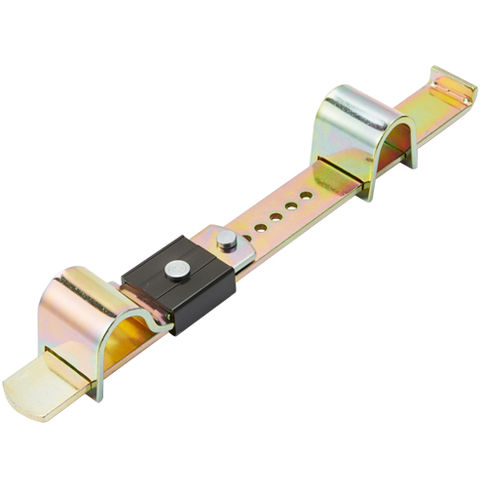

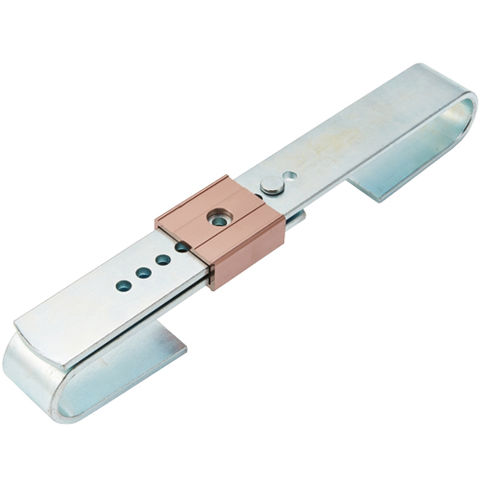

BAR SEAL
ISO17712:2013 certified High Security Barrier Seals with adjustable locking positions for securing container central bars. Made with high-strength steel, the Bar Seals are designed to provide extreme protection to deter tampering and illegal access into sealed containers and trucks.
Once the locking pins are applied and locked in, the Bar Seals are secured and cannot be opened.
Identical serial numbers are printed on the bar and bolt seal to prevent parts substitution or replacement.
Bar Seals can only be removed with a electric grinder or electric bolt cutter.
FEATURES:
-
3 versions to choose from - Maxi Bar Seal, Medium Bar Seal and Mini Bar Seal.
-
Single Time Use only.
-
Tool-less application.
-
Can only be removed using electric grinder or electric bolt cutter.
-
Secures both container door bars for maximum security.
APPLICATIONS:
-
Truck Trailers
-
Ocean Containers
-
Rail Cars
-
Intermodal Containers
-
Cash-in-transit
-
Storage
-
Containers
PACKAGING:
10pcs per Carton
Box Dimensions:
18" x 11" x 5"
Box Weight:
45.0 lbs
TECHNICAL SPECIFICATIONS:
Pull Strength:
Maxi Bar Seal: 7385.0 LBF / 3350.0 KGF
Medium Bar Seal: 6500.0 LBF / 2950.0 KGF
Mini Bar Seal: 3300.0 LBF / 1500.0 KGF
Material:
-
Bar: Galvanised Carbon Steel
-
Locking Pin: Galvanised Carbon Steel
-
Locking Cap: Aluminum
Locking Pin Marking:
Laser Printing – Company name, logo, unique sequential numbers and barcode
Available Colours:
Black, Silver
